KTB1366-Y-U/PF
Manufacturer:
KEC Corporation
Mfr.Part #:
KTB1366-Y-U/PF
Datasheet:
Description:

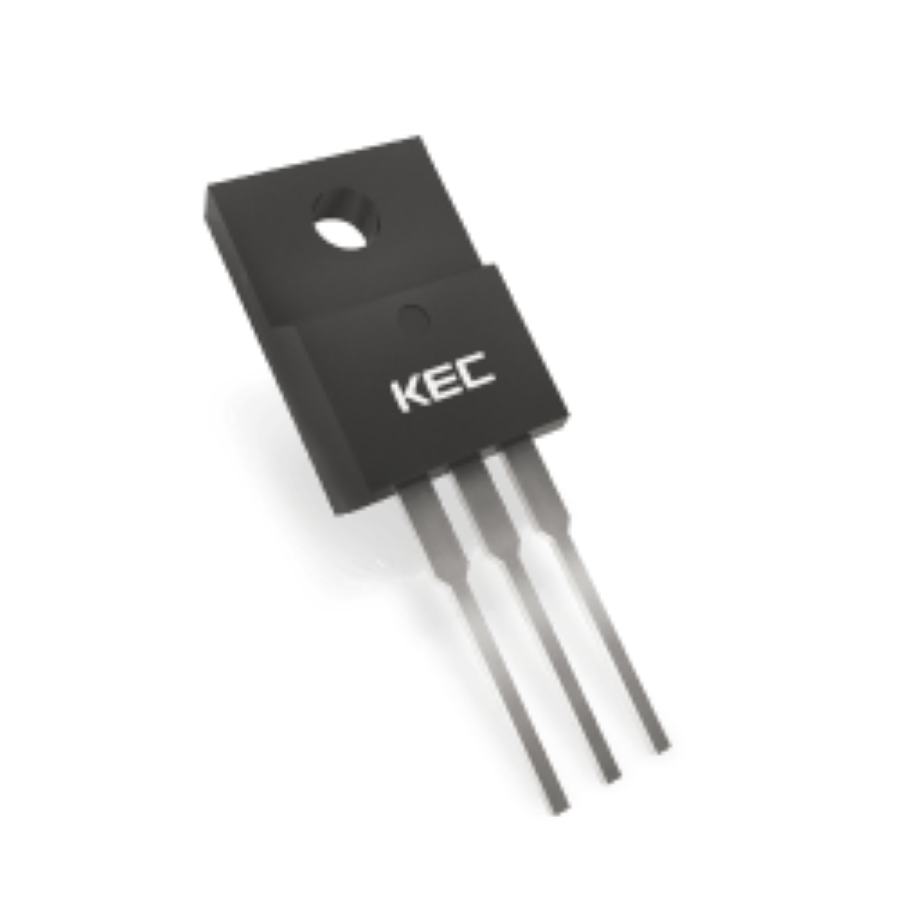

BJTs TO-220IS Through Hole PNP 25 W Collector Base Voltage (VCBO):-60 V Collector Emitter Voltage (VCEO):-60 V Emitter Base Voltage (VEBO):-7 V
| Parameter | Value |
|---|---|
| RoHS | Compliant |
| Packaging | Tube |
| Transistor Type | PNP |
| Collector Emitter Voltage (VCEO) | -60 V |
| Emitter Base Voltage (VEBO) | -7 V |
| Collector Base Voltage (VCBO) | -60 V |
| Max Collector Current | -3 A |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Power Dissipation | 25 W |
| Gain Bandwidth Product | 9 MHz |
| Max Cutoff Collector Current | -100 µA |
| Collector Emitter Saturation Voltage | -250 mV |
Stock: 618
Distributors
pcbx
pcbxUnit Price$0.55133
Ext.Price$0.55133
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55133 | $0.55133 |
| 10 | $0.44534 | $4.45340 |
| 25 | $0.40153 | $10.03825 |
| 50 | $0.36202 | $18.10100 |
| 100 | $0.30759 | $30.75900 |
| 300 | $0.29430 | $88.29000 |
| 500 | $0.28159 | $140.79500 |
| 1000 | $0.26627 | $266.27000 |
